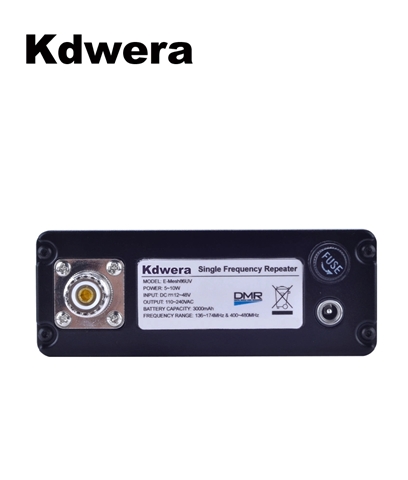

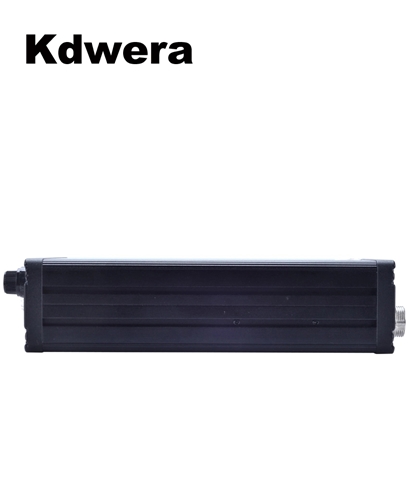

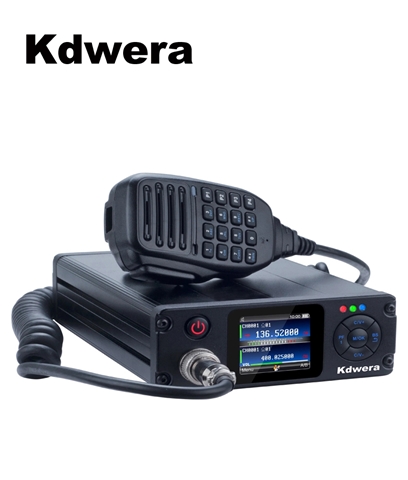

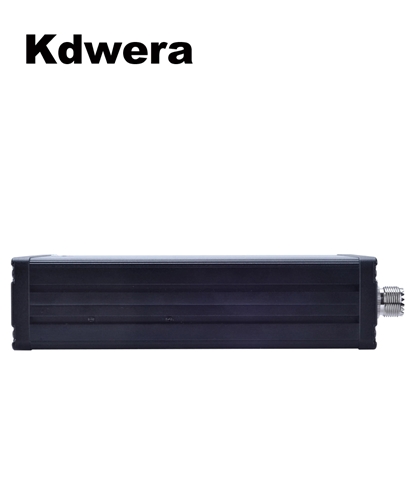

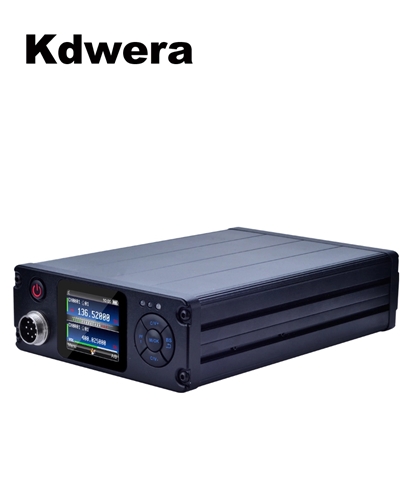

E-Mesher86UV

  • E-Mesher86UV

E-Mesher86UV

Model Number:E-Mesher86UV

Brand:Kdwera

Product Origin:Xiamen

Type:Dmr Repeater

inquiry

Detailed Introduction

Main Features

  • Public Features

    • 4000 Channels /16 Zones

    • UV dual-band, dual-standby(optional)

    • VFO mode

    • Scan

    • Self-defined buttons

    • Menu operation on/off

    • DMR/Analog detection simultaneously

  • Digital Features

    • GPS (optional)
    • Kill
    • Revive
    • Roaming
    • Emergency alarm
    • SMS
    • Voice encryption
    • Remote monitor
    • Repeat/Talk around
    • 2 time-slots in DMO
    • Single frequency repeater
    • 20,000 groups
    • Recording up to 200 hours
      (optional for 200+ hours)
    • 200,000+ contacts
    • 250 RX group lists
    • 250 Scan lists
    • AMBE+2TM vocoder
    • Private/Group/All cal!
    • 2,000 friend contacts
  • Analog Features

    • CTCSS

    • CDCSS

    • SQ Level

    • Monitor

Technical specification

General specificaiton
Antenna lmpedance 50Ω
Rated voltage DC: 12V
Frequency stability(-20℃、+60℃、+25℃) +/-0.5ppm
Dimension(L*W*H) 120*177*43mm
Battery Capacity (polymer)(optional) 3000mAh
Note: Specifications are subject to change from time to time without notice. All specification is conventional standard one.

Receiver
Item UHF VHF
Frequency range 400-480MHz 136-174MHz
Channel capacity (zones included) 4000 (digital / analog)
Channel spacing 12.5kHz/25kHz
FM sensitivity(12dB SINAD) 0.2μV
Digital sensitivity (5% BER) 0.2μV
Intermodulation 65dB
Adjacent channel selectivity 60dB@12.5kHz / 65dB@25kHz
Spurious rejection 65dB
Rated audio 500mw
Audio distortion @ rated audio 3%
FM Hum & noise -40dB@12.5kHz / -45dB@25kHz
Audio response +1、-3dB
Conducted / radiated emission -57dBm

Transmitter
Item UHF VHF
Frequency range 400-480MHz 136-174MHz
Channel spacing 12.5kHz/25kHz analog
Output power High power: 10W Low power: 3W
FM modulation restriction ±2.5dB@12.5kHz / ±5.0dB@25kHz
FM hum & noise -40dB@12.5kHz / -45dB@25kHz
Conducted/radiated emission -36dBm<1GHz / -30dBm>1GHz
Adjacent channel selectivity -60dB@12.5kHz / -65dB@25kHz
Audio response +1、-3dB
Audio distortion 3%
FM modulation 12.5kHz :11KOF3E
25kHz :16KOF3E
4FSK digital modulation 12.5kHz data: 7K60F1D & 7K60FXD
12.5kHz audio: 7K60F1E & 77K60FXE
12.5kHz data & audio: 7K60F1W
Digital vocoder AMBE+2TM
Digital protocol ETSI-TS102 361-1、-2、-3
