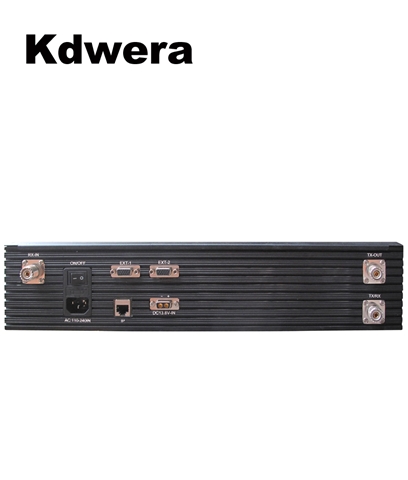

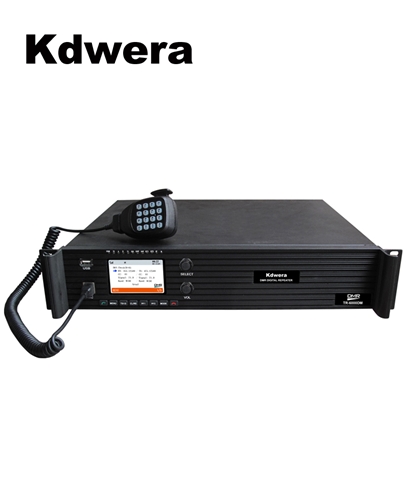

TR-6000DM

  • TR-6000DM

TR-6000DM

Model Number：TR-6000DM

Brand：Kdwera

Product Origin：Xiamen

Type：Dmr & 4G Repeater

inquiry

Detailed Introduction

  • Main Features

    • 16 Zones (Digital channel: 256; Analog channel: 256)

    • 3.5" big & colorful TFT display

    • Scan

    • Backlight control

    • High / Low power

    • Language options

    • Profile options

    • Keytone control

    • Display mode

    • Zone setting

  • Digital Features

    • CTCSS

    • CDCSS

    • Contact

    • Call Log

  • Analog Features

    • CTCSS

    • CDCSS

Technical specification

General specificaiton
Product Digital / Analogue Repeater
Model TR-6000DM
Frequency UHF VHF
Zone capacity 16
Channel capacity per zone 16
Typical RF output 25-40W 25-50W
Freqeuncy range 400 - 470MHz 136 - 174MHz
Dimension(H*W*D) 88*483*366mm
Voltage demand 100-240 VAC (13.6 VDC)
Weight 11kg(w/o antenna)
Current consumption:
Standby
Transmitting 		1.0A (100 VAC), 0.5A (240 VAC)
4.0A (100 VAC), 1.8A (240 VAC)
Working temperature -30℃ + 60℃
Max work cycle 100%
FCC description ABZ99FT4025 ABZ99FT3025

Receiver
Frequency range 400 - 470 MHz 136 - 174 MHz
Channel spacing 12.5 kHz / 25 kHz
Frequency stability (-30°C、+60°C、+25°C) + / - 0.5 ppm
Analogue sensitivity 0.25 uV (12 dB SINAD) / 0.35 uV (20 dB SINAD) / 0.2 uV(Typical)
Digital sensitivity 5% BER：0.3uV
Intermodulation TIA603C ETS 75 dB / 70 dB
Adjacent channel selectivity 60 dB @ 12.5 kHz / 70 dB @ 25 kHz
Spurious rejection TIA603C ETS 75 dB / 70 dB 80 dB / 70 dB
Audio distortion @ rated audio 3%(Typical)
Hum & noise -40dB@12.5kHz / -45dB@25kHz
Audio response +1、-3dB
Conducted spurious emission -57dBm

Transmitter
Frequency Range 400-470MHz 136-174MHz
Channel Spacing 12.5kHz/25kHz
Frequency stability (-30°C、+60°C、+25°C) + / - 1.5 ppm (XiR M8260)
+ / - 0.5 ppm (XiR M8268)
RF output 25-40W 25-50W
Modulation limit + / -2.5dB@12.5kHz ; + / -5.0dB@25kHz
FM hum& noise -40dB@12.5kHz / -45dB@25kHz
Conducted/radiated emission -36dBm＜1GHz / -30dBm＞1GHz
Adjacent channel selectivity -60dB@12.5kHz / -70dB@25kHz
Audio Response +1、-3dB
Audio Distortion 3%
FM modulation 12.5kHz :11KOF3E / 25kHz :16KOF3E
4FSK digital modulation 12.5kHz data: 7K60F1D
12.5kHz data & audio: 7K60FXD
Digital vocoder AMBE+2TM
Digital protocol ETSI-TS102 361-1、-2、-3
